The tide level of my model does not match TPXO9

General scientific issues regarding ROMS

Moderators: arango, robertson

Post Reply
Message
Author
tao
Posts: 9
Joined: Tue Aug 13, 2024 3:09 pm
Location: south China university of technology

The tide level of my model does not match TPXO9

#1 Unread post by tao »

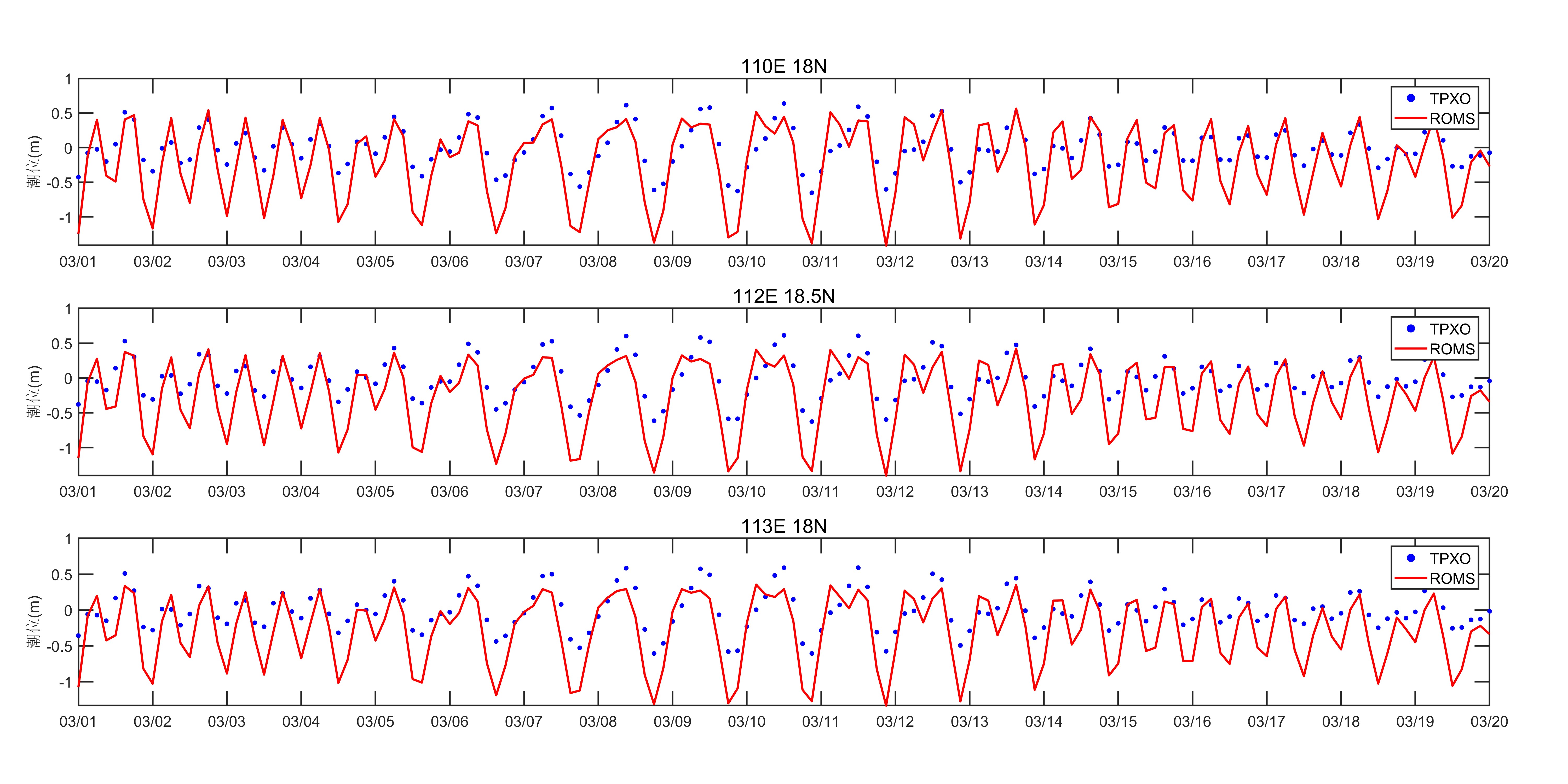

I used the data from TPXO9 to generate a tidal forcing file. I defined the following cpp option and ran it for 90 days. There is a big deviation between the tidal level change of the site and the forecast data of TPXO9. Could someone please help me find out what the problem is? Appreciate any suggestions。
** Options for Tidal test case.
**
** Application flag: test_case
** Input script: test_case.in
*/
#define ANA_BSFLUX
#define ANA_BTFLUX
#define ANA_FSOBC
#define ANA_INITIAL
#define ANA_M2OBC
#define ANA_M3OBC
#define ANA_SMFLUX
#define ANA_SSFLUX
#define ANA_STFLUX
#define ANA_TOBC
#define ASSUMED_SHAPE
#define AVERAGES
#define BOUNDARY_ALLGATHER
#define COLLECT_ALL
#define CHARNOK
#define CRAIG_BANNER
#define CURVGRID
#define DJ_GRADPS
#define DOUBLE_PRECISION
#define GLS_MIXING
#define LIMIT_BSTRESS
#define KANTHA_CLAYSON
#define MASKING
#define MIX_GEO_TS
#define MIX_S_UV
#define MPI
#define NONLINEAR
#define NONLIN_EOS
#define N2S2_HORAVG
#define PERFECT_RESTART
#define POWER_LAW
#define PROFILE
#define K_GSCHEME
#define RADIATION_2D
#define REDUCE_ALLREDUCE
#define RI_SPLINES
#define RST_SINGLE
#define SALINITY
#define SOLVE3D
#define SPLINES_VDIFF
#define SPLINES_VVISC
#define SSH_TIDES
#define STATIONS
#define TS_DIF2
#define UV_ADV
#define UV_COR
#define UV_U3HADVECTION
#define UV_C4VADVECTION
#define UV_QDRAG
#define UV_TIDES
#define UV_VIS2
#define VAR_RHO_2D
#define VISC_GRID
#define WET_DRY

smchen
Posts: 12
Joined: Sat Mar 21, 2015 12:38 am
Location: TORI, Taiwan

Re: The tide level of my model does not match TPXO9

#2 Unread post by smchen »

My tide-related CPPs are

#define SSH_TIDES
#define UV_TIDES
#define ADD_FSOBC
#define ADD_M2OBC

You can try adding ADD_FSOBC and ADD_M2OBC.
